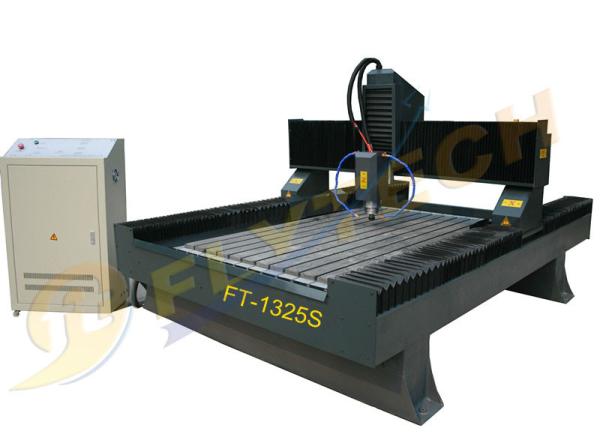

FT-1325 Stone Engraving Machine
FT-1325 Heavy duty stone engraving machine is professional for
marble or granite or other stone carving ,can accomplish
3D job,releif ,automatic finish the pattern you design by
software,save much working time of labour cost.
1. Features
1) Linear rails on X, Y (Y axis is controlled by two motors)and Z
(ballscrew transmission)axes are used to guarantee high accuracy
and stable performance, and support heavy weight. The square
sliding blocks are of good dust-proof effect. Automatic oil feeding
and lubricating system makes the regular maintenance very easy.
2)Superior high power water-cooling spindle could keep working at
low noise level, safeguarding stability for long-time operation.
3) Break-point memory enable the machine to continue the unfinished
work after a work shift or accidents, such as tool breaking.
4) Compatible with many CAD/CAM software, such as Type3, Artcam,
Castmate, Wentai, etc.
stone carving machine Applications :
Suitable for big size hard materials such as marble, granite,
artificial stone,tombstone, ceramic tiles, glass, etc, can be
engraved by such machine, to produce arts and crafts, pictures,
etc. This machine can be also used to work on wood, advertising
materials.
2.Parameter
Model | FT-1325s stone cnc router |
Working area | 1300*2500*300mm(51.2*98.4*11.8inch) |
Table size | 1465*3000mm |
Resolution | 0.03mm |
Repeatability | 0.05mm |
X Drive system | Rack and pinion drive,HIWIN rails |
Y Drive system | Rack and pinion drive,HIWIN rails |
Z drive system | Ball screw,HIWIN rails |
Max consume power | 8.0kw |
Max running speed | 0-10000mm/min |
working speed | 0-6000mm/min |
Spindle | 4.5kw(or 5.5KW) water-cooled |
Spinle Speed | 0-24000rpm |
3-axis Motor | Stepper motor(or servo motor) |
working voltage | 380V/50Hz/60Hz |
Command | G code(*uoo,*nc,*mmg,*plt) |
Operating system | DSP or NC studio |
Software | Type3 or ucancam or Artcam,Mastercam |
Packing size | 3500*2180*1800mm |
Net weight | 1100kg |
Gross weight | 1200kg |
