    Latest Styrofoam structurer 1325 cnc woodworking machine with servo motors

    Ask Lasest Price
    Brand Name : Flytech
    Certification : CE
    Model Number : FT-1325
    Price : $10000-$18000 FOB Qingdao
    Delivery Time : 20 days
    Payment Terms : T/T
    Supply Ability : 20set/month
    • Product Details
    • Company Profile

    Latest Styrofoam structurer 1325 cnc woodworking machine with servo motors

    FT-1325 Styrofoam CNC woodworking Machine

    Features:

    1.Taiwan Hiwin Linear guideway,German Rack opinion driving

    2.Japan Yaskawa servo motors with fast speed,low noise

    3.NK200 control system,easy to operate

    4.CE

    Industrial:

    This molds is mainly used for the following two industrial fields.

    Firstly,molds industrial:It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.

    Secondly, musical instrument industry: Engrave 3D large instruments and shaping

    Materials:

    Styrofoam,wood,resin,aluminum,non-metal materials,etc

    Parameters of Styrofoam CNC Router Machine

    FT-1325 Styrofoam CNC woodworking Machine

    X,Y, Z-Axis Travel

    1300*2500*700

    Table size

    1800*3500mm

    Spindle Power

    5.5KW water coolen spindle

    Machine structure

    8mm thick heavy-duty tubular steel frame

    Repeatability

    +/- 0.02mm

    working speed

    30m/min

    Max. Rapid Travel Speed

    45m/min

    Drive System X and Y axis

    German Slanting Rack

    Taiwan Hiwin 25 rail linear guideway

    Drive system Z axis

    Germany imported ballscrew

    Standard Table Surface

    Milling steel table(T slot)

    Working voltage

    380V,50Hz/60Hz 3 phrase or 3 phrase optional

    Drive system

    Yaskawa servo motor

    Control system

    NK200 (Ncstudio or Syntec system)

    Command

    G code,u00,mmg

    Electric Box

    Intergrated computer control cabinet

    Gross Weight

    3000KG

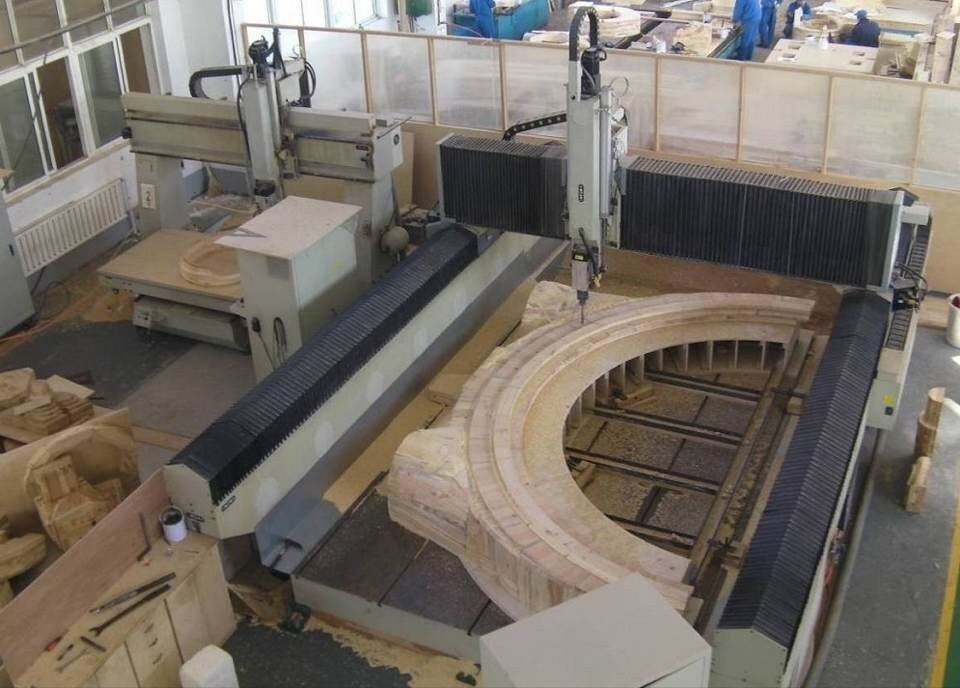

    Samples:
